Intelligent, OEM-Configurable AHU Automation designed to replace generic field devices with precise, adaptive temperature and air quality regulation.
Intelligent, OEM-Configurable
AHU Automation
The AHU BR-V3 is a fully custom-built industrial controller designed to replace generic field devices with precise, adaptive temperature and air quality regulation.
A proprietary embedded hardware platform designed from the ground up to replace generic controllers. Powered by a 32-bit ARM Cortex® microcontroller offering fully tunable PID control loops for precise temperature regulation (better than ±1.0°C accuracy).
Scalable by design, the system features a modular architecture with optional Industrial I/O Extension Cards for expanding sensor inputs and control outputs.
Control Tech
PID Loop Tuned
Core Capabilities
Advanced features that drive efficiency and control.
Universal Fan Control
Seamless integration with EC Fans, Star-Delta Starters, and Variable Frequency Drives (VFDs).

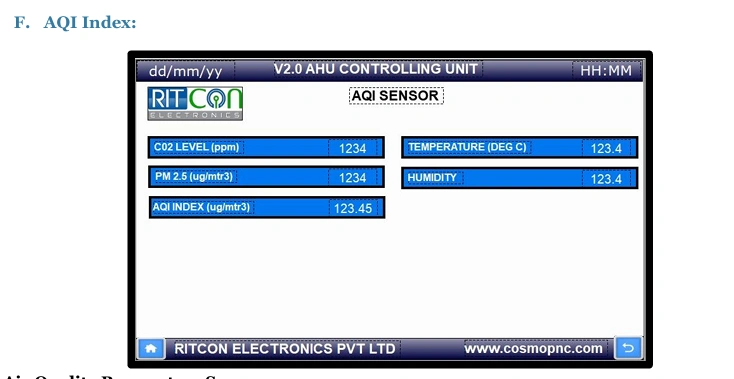

Advanced Sensing & AQI
Real-time monitoring of CO2, PM2.5, and PM10 levels with Demand-Controlled Ventilation (DCV).
Smart Operating Modes
Summer/Winter modes for seasonal energy efficiency and automated occupancy scheduling.
Safety First
Built-in monitoring for fire alarms, smoke detectors, filter clogging, and actuator feedback mismatch.
Core Technology
Powered by a 32-bit ARM Cortex® microcontroller offering fully tunable PID control loops.
Scalability
Features a modular design with an optional Industrial I/O Extension Card.
Interactive HMI Showcase
Intuitive Touchscreen Interface offering simple, clean navigation for all user levels from operators to engineers.

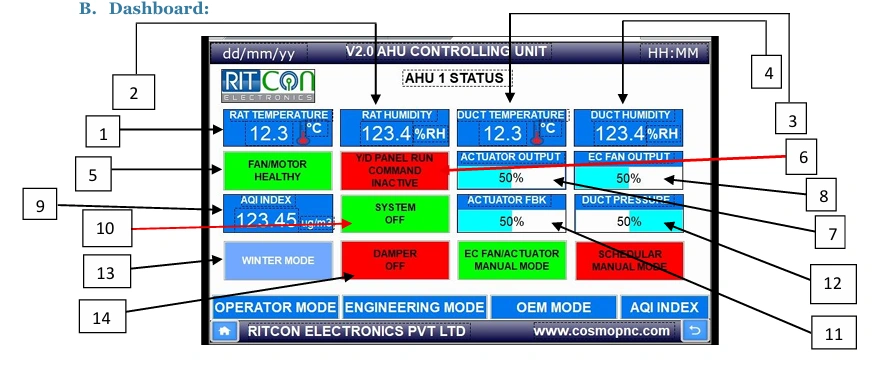

Dashboard Mode
Visualizes Return Air Temperature (RAT), Humidity, and Duct Pressure in real-time.

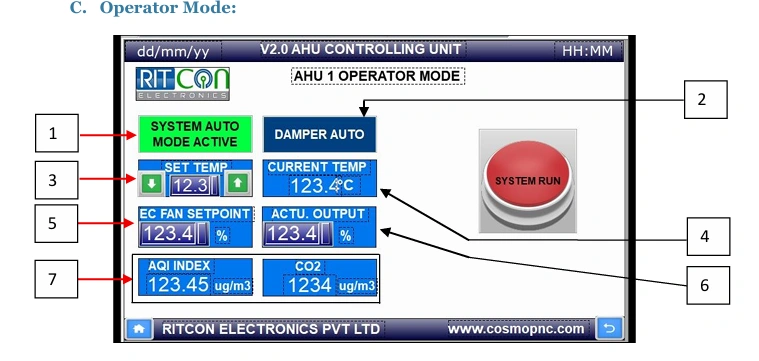

Operator Mode
Simple interface for manual overrides and setpoint adjustments.

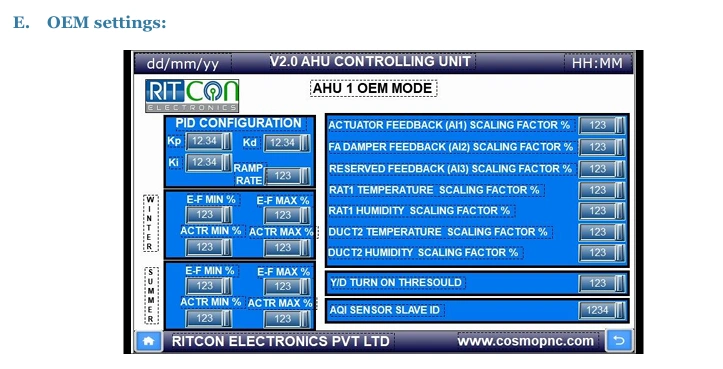

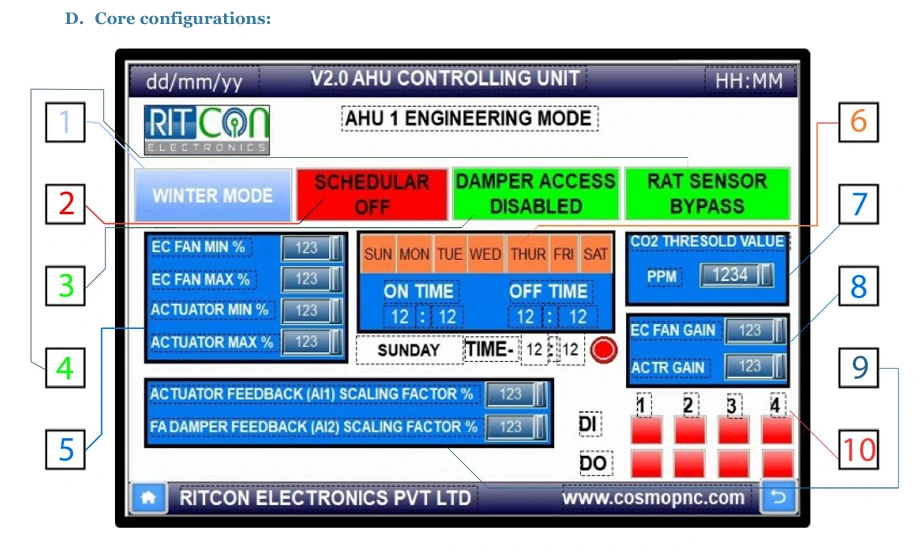

Engineering Mode
Secure area for technicians to tune PID parameters (Kp, Ki, Kd) and calibrate sensors.

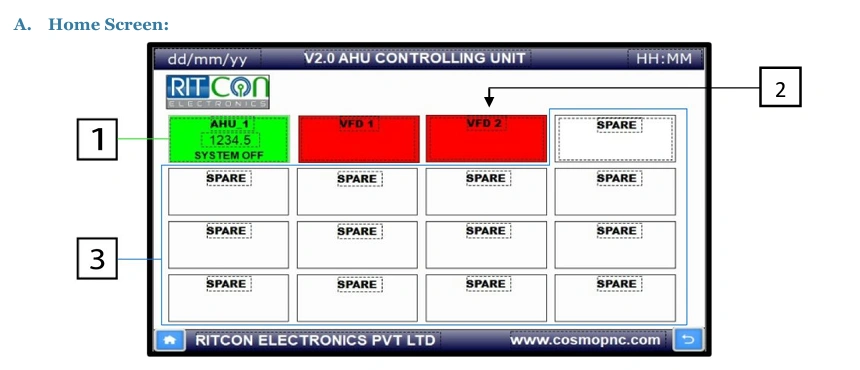

Interface Navigation Tour
System Components
High-quality industrial grade enclosures and wiring systems designed for durability.

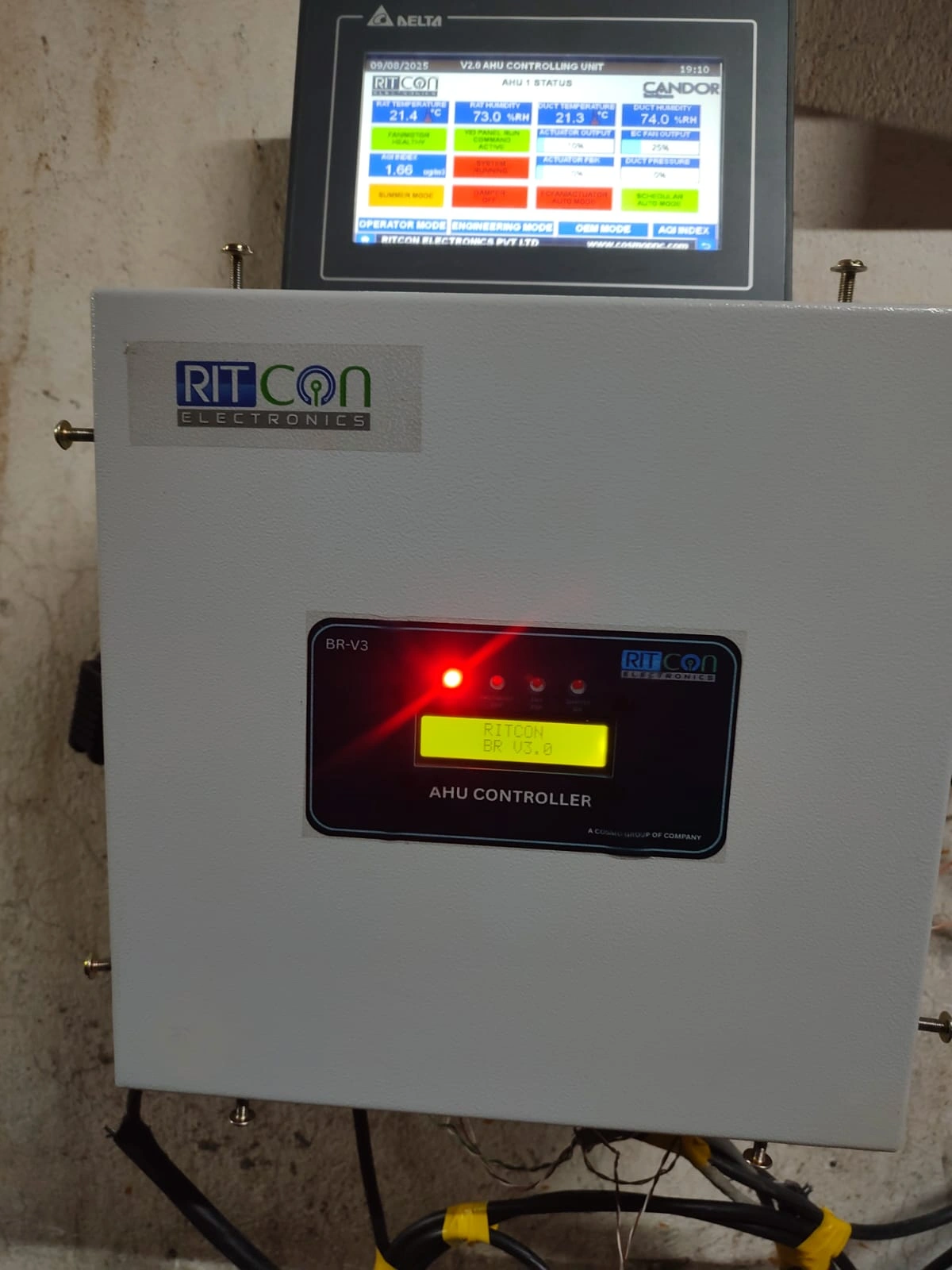

Internal Architecture
Industrial grade wiring and component layout

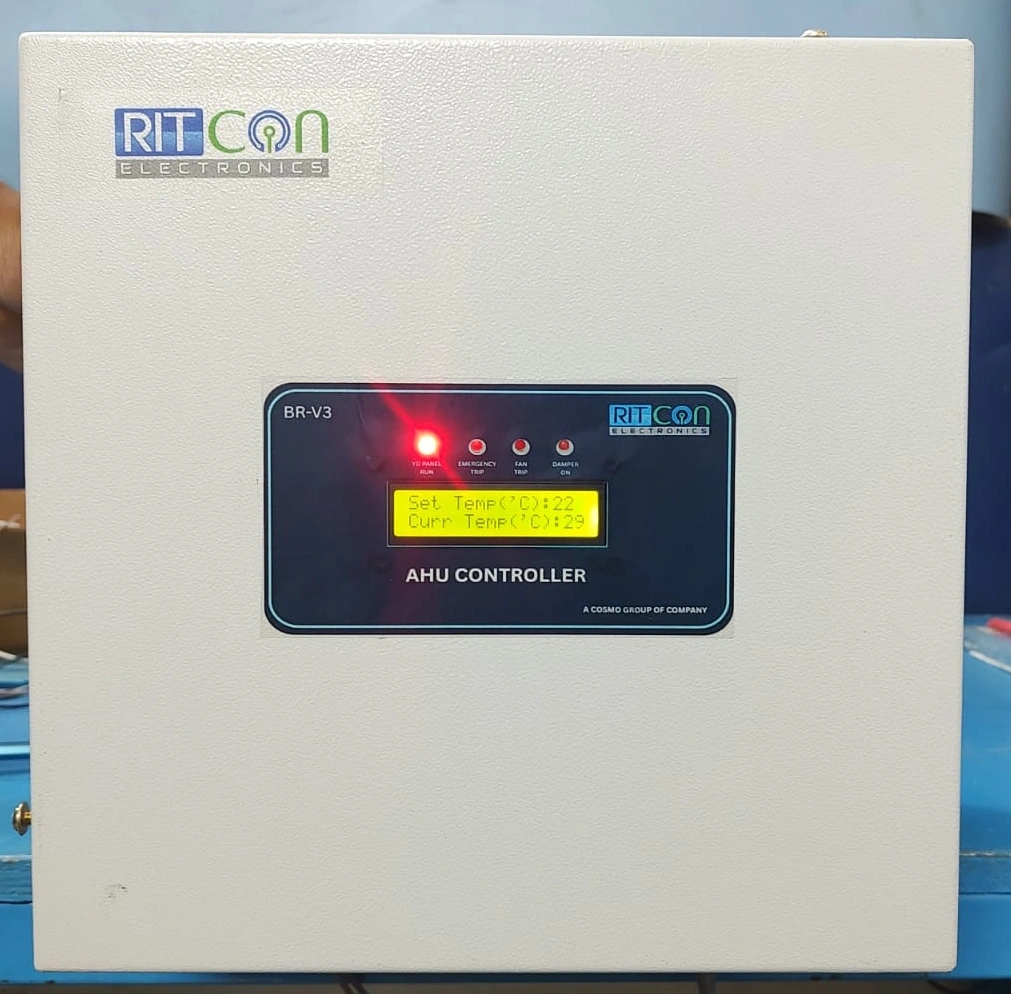

Compact Design
Space-saving wall mount enclosure
Technical Specifications
Applications & Use Cases
Corporate Offices
Handles fluctuating occupancy loads in meeting rooms and open-plan areas.
Critical Infrastructure
Precision cooling for Server Rooms and Data Centers.
Public Spaces
Gyms and Conference Halls requiring aggressive ventilation.
